3073649

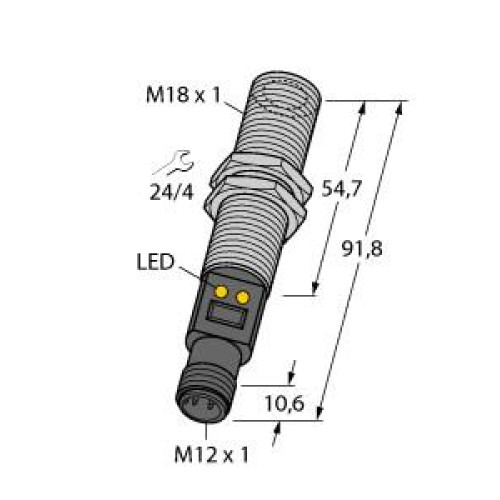

M18T Series: Temperature Sensor, 6: 1 Plastic Fresnel Lens, Output: one NPN, one PNP, 5-pin M12 Integral QD

Manufacturer's No: M18TB6EQ     Manufacturer: Turck Banner
M18T Series: Temperature Sensor, 6: 1 Plastic Fresnel Lens, Output: one NPN, one PNP, 5-pin M12 Integral QD

Availability On Request

POA
  • Temperature sensor with Passive Infrared Sensor
  • Operating voltage: 10-30 VDC
  • Connection via M12 x 1 connector
  • D:S ratio: 6:1
  • Switching point adjustable via teach-in
  • Temperature measuring range: 0-300°C


Product

Manufacturer Material ID -
M18TB6EQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Max. operation temperature -
70 Degrees celsius
Rated control supply voltage at DC -
10 Volt
Type of electric connection -
Other
