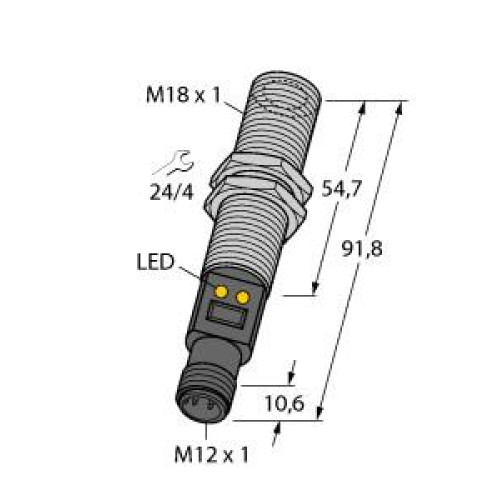

M18T Series: Temperature Sensor, 6: 1 Plastic Fresnel Lens, Output: Analog 0-10 V, PNP Alarm, 5-pin M12 Integral QD

Manufacturer's No: M18TUP6EQ     Manufacturer: Turck Banner
M18T Series: Temperature Sensor, 6: 1 Plastic Fresnel Lens, Output: Analog 0-10 V, PNP Alarm, 5-pin M12 Integral QD

Availability On Request

£485.44
  • Temperature sensor with Passive Infrared Sensor
  • Operating voltage: 12-30 VDC
  • Connection via M12 x 1 connector
  • Distance-to-Spot ratio: 6:1
  • Measuring range adjustable via teach-in
  • Analog output: 0-10 V
  • PNP alarm output switches at 10 V
  • Temperature measuring range: 0-300 °C


Product

Manufacturer Material ID -
M18TUP6EQ
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Degree of protection (IP rating) -
IP67
Max. operation temperature -
70 Degrees celsius
Rated control supply voltage at DC -
12 Volt
Type of electric connection -
Other
Turck Banner

Availability On Request

£485.44
