2TLA050003R0120

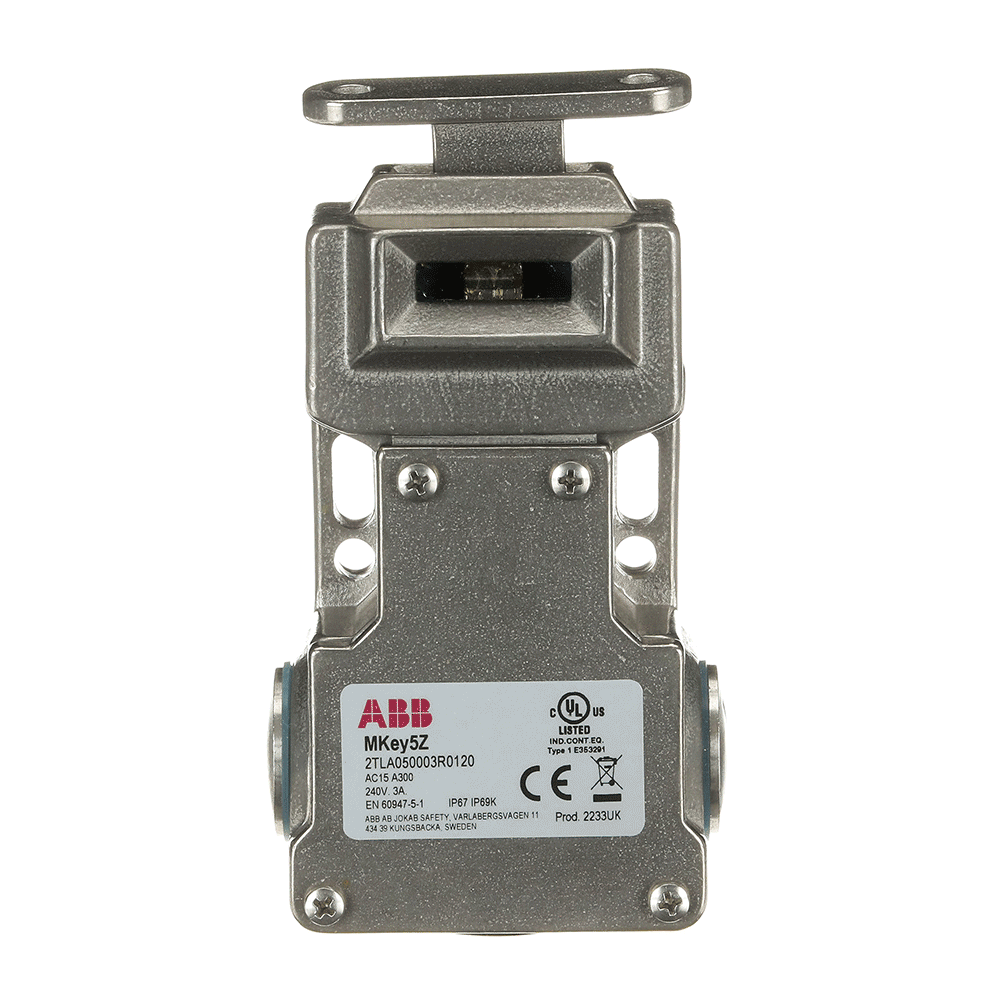

MKey5Z Switch

Manufacturer's No: M5KEY5     Manufacturer: ABB
MKey5Z Switch

Availability On Request

£241.53
  • MKey5Z Switch - Safety interlock switch - Stainless steel body and head - 12N holding force - 2NO+1NC guard open - 3xM20 conduit entries - Delivered with standard key

  • Mechanical safety switches for monitoring doors and hatches

  • Safe interlocking function
  • Can be used as process locks or safety locks with safe unlocking function
  • Available in different materials and sizes to meet various application requirements


Product

Manufacturer Material ID -
M5KEY5
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
8536500700
Country of Origin -
GB
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Material housing -
Metal
Degree of protection (IP) -
Other
Type of interface -
None
Type of electric connection -
Cable entry metrical
Ambient temperature during operating -
-25 Degrees celsius
Coating housing -
Other
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
1
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Forced opening -
Height of sensor -
103.5 Millimetre
Housing material -
Metal
Interface type -
Other
Length of sensor -
37.5 Millimetre
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
1
Number of safety auxiliary contacts -
0
Rated operation current Ie at AC-15, 125 V -
3 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at AC-15, 24 V -
3 Ampere
Rated operation current Ie at DC-13, 125 V -
0.2 Ampere
Rated operation current Ie at DC-13, 230 V -
0.2 Ampere
Rated operation current Ie at DC-13, 24 V -
0.2 Ampere
Suitable for safety functions -
Type of interface for safety communication -
Other
Type of switching contact -
Slow-action switch
Width sensor -
58 Millimetre
ABB

Availability On Request

£241.53
