3072505

MAE6016Q 16CH 2-STICK MA EMITTER

Manufacturer's No: MAE6016Q     Manufacturer: Turck Banner

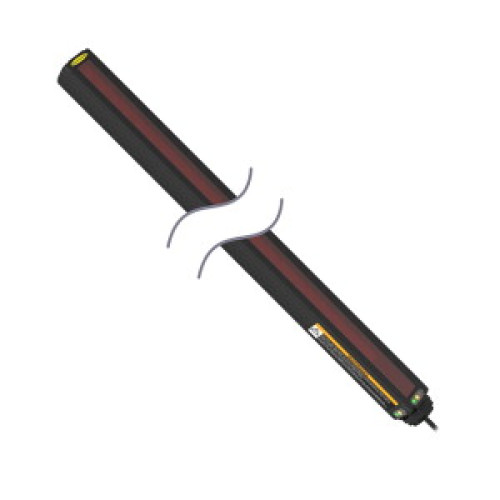

MAE6016Q 16CH 2-STICK MA EMITTER

Availability On Request

£994.47
  • Measuring Light Screen Emitter
  • Operating Voltage: 16-30 VDC
  • Max. Range: 13,500 mm
  • Cable Length: 0.15 m with male connector
  • Scan Field (Y): 1514 mm
  • Resolution: 19 mm
  • Range: 13.5 m
  • Connector: M12 x 1, 8-pin


Product

Manufacturer Material ID -
MAE6016Q
Net Weight -
2.81kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Height of sensor -
1603 Millimetre
Length of sensor -
38.1 Millimetre
Reaction time -
45.4 Millisecond
Resolution of the light curtain -
9.5 Millimetre
Safety field height -
1514 Millimetre
Type of electric connection -
Connector M12
Width sensor -
38.1 Millimetre
Turck Banner

Availability On Request

£994.47
Sign in or Register for customer prices.
