3062652

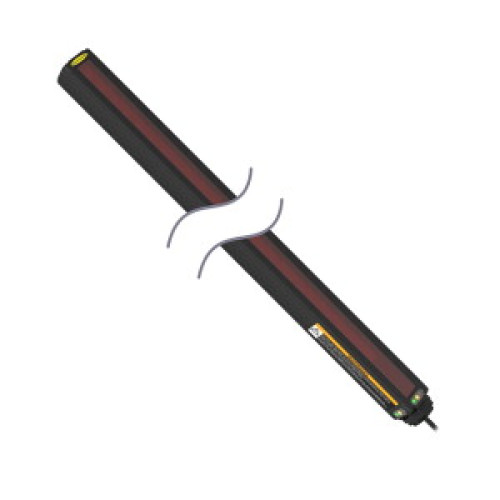

High-Res. MINI-ARRAY Emitter: 488 (19.2 in), Beam Spacing: 2.5 (0.1 in), Total Beams = 192, System Range (w/matching receiver) = 0

Manufacturer's No: MAHE19A     Manufacturer: Turck Banner
High-Res. MINI-ARRAY Emitter: 488 (19.2 in), Beam Spacing: 2.5 (0.1 in), Total Beams = 192, System Range (w/matching receiver) = 0.4-1.8 m, System Requires 2 Quick-Disconnect Cables

Availability On Request

POA
  • Measuring Light Screen
  • Emitter
  • Operating Voltage: 11.4 - 14 VDC
  • Max. Sensing Range: 1.8 meters
  • Max. Range: 1800 mm
  • Minimum Target Size: 2.5 mm
  • Scan Field: 488 mm
  • Protection Class: IP65
  • Adjustment via Software


Product

Manufacturer Material ID -
MAHE19A
Net Weight -
1.14kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
US
UNSPSC -
41112400

Technical Specification

Ambient temperature -
0 Degrees celsius

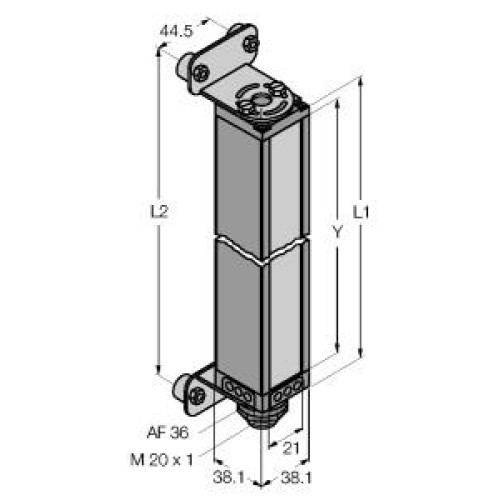

Height of sensor -
561 Millimetre
Length of sensor -
38.1 Millimetre
Resolution of the light curtain -
2.5 Millimetre
Safety field height -
488 Millimetre
Scope of delivery of the one-way system -
Transmitter
Type of electric connection -
Connector 7/8 inch
Wavelength of the sensor -
880 Nanometre
Width sensor -
38.1 Millimetre
Turck Banner

Availability On Request

POA
