3062654

High-Res. MINI-ARRAY Emitter: 813 (32.0 in), Beam Spacing: 2.5 (0.1 in), Total Beams = 320, System Range (w/matching receiver) = 0

Manufacturer's No: MAHE32A     Manufacturer: Turck Banner

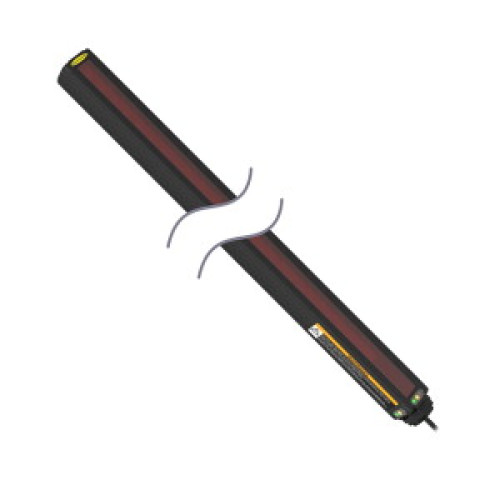

High-Res. MINI-ARRAY Emitter: 813 (32.0 in), Beam Spacing: 2.5 (0.1 in), Total Beams = 320, System Range (w/matching receiver) = 0.4-1.8 m, System Requires 2 Quick-Disconnect Cables

Availability On Request

£3,437.99
  • Measuring Light Screen
  • Emitter
  • Max. range: 1800 mm
  • Min. target size: 2.5 mm
  • Scan field: 813 mm
  • Max. sensing range: 1.8 m
  • Operating voltage: 11.4…14 VDC
  • Operating voltage (from controller): 11.8…12.2 VDC
  • Protection class: IP65
  • Adjustment via software


Product

Manufacturer Material ID -
MAHE32A
Net Weight -
2.87kg

Additional Product Information

Commodity Code -
90318020000
Country of Origin -
US
UNSPSC -
39122216

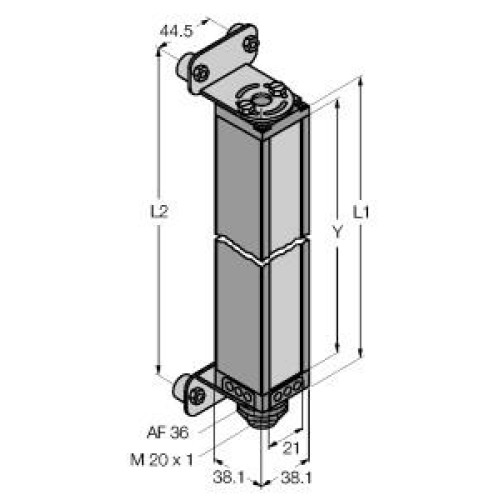

Technical Specification

Ambient temperature -
0 Degrees celsius
Height of sensor -
887 Millimetre
Length of sensor -
38.1 Millimetre
Resolution of the light curtain -
2.5 Millimetre
Safety field height -
813 Millimetre
Scope of delivery of the one-way system -
Transmitter
Type of electric connection -
Connector 7/8 inch
Wavelength of the sensor -
880 Nanometre
Width sensor -
38.1 Millimetre
Turck Banner

Availability On Request

£3,437.99
