63001057

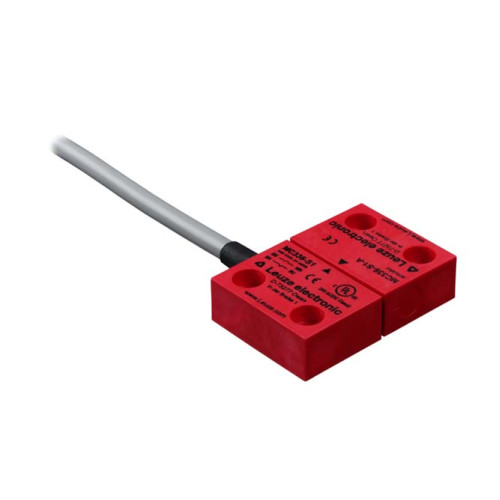

The Magnetically coded sensor from . Contact allocation: 1NC + 1NO; Connection: Cable with connector, M12, Metal, 4 -pin, 200 mm,

Manufacturer's No: MC336-S1-C02M12-A     Manufacturer: Leuze
The Magnetically coded sensor from . Contact allocation: 1NC + 1NO; Connection: Cable with connector, M12, Metal, 4 -pin, 200 mm, PVC; Dimensions: 26,2 mm x 13 mm x 36 mm; Housing material: Plastic,

Availability On Request

£61.00
  • Contact allocation: 1NC + 1NO
  • Connection: Cable with M12 metal connector, 4-pin, 200 mm length, PVC
  • Dimension: 26.2 mm x 13 mm x 36 mm
  • Housing material: Glass fiber reinforced plastic (PPS), self-extinguishing
  • External actuator: Magnetically coded
  • Cut-out point (OFF), min.: 8 mm
  • Assured cut-out distance (Sar), min.: 11 mm
  • Assured cut-in distance (Sao), max.: 3 mm
  • Degree of protection: IP 67
  • Certifications: c UL US, TÜV Süd (with suitable safety relay)

Accessories

Others



Product

Manufacturer Material ID -
MC336-S1-C02M12-A
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
90328900
Country of Origin -
IT
UNSPSC -
39122200

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-20 Degrees celsius
Coating housing -
Uncoated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
13 Millimetre
Housing material -
Plastic
Length of sensor -
36 Millimetre
Max. output current at protected output -
500 Milliampere
Mechanical mounting condition for sensor -
Other
Min. output current -
500 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
0
Protected switch distance OFF -
11 Millimetre
Protected switch distance ON -
3 Millimetre
Suitable for safety functions -
Switching distance -
8 Millimetre
Type of actuation -
Magnet
Type of electric connection -
Connector M12
Voltage type -
AC/DC
Width sensor -
26.2 Millimetre
Leuze

Availability On Request

£61.00
