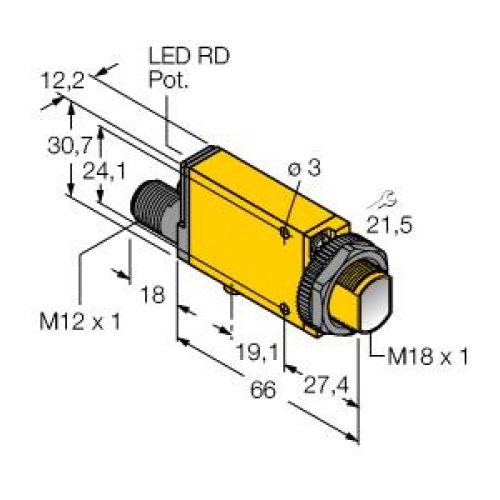

MINI-BEAM NAMUR: Retro, Range: 5 m, Input: 5-15 V dc, Output: NAMUR, 4-pin M12 Integral QD

Manufacturer's No: MIAD9LVQ     Manufacturer: Turck Banner
MINI-BEAM NAMUR: Retro, Range: 5 m, Input: 5-15 V dc, Output: NAMUR, 4-pin M12 Integral QD

Availability Available to order

POA
  • Type: Photoelectric Sensor, Retroreflective Sensor
  • Operating Voltage: 5-15 VDC
  • Max. Range: 5000 mm
  • Connector: M12 x 1, 4-pin
  • Degree of Protection: IP67
  • Sensitivity: Adjustable via potentiometer
  • Alignment Indicator
  • NAMUR Output in accordance with DIN 19234 (IEC/EN 60947-5-6)
  • ATEX Category: II 1 G, Ex Zone 0


Product

Manufacturer Material ID -
MIAD9LVQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 1G
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
84 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
5000 Millimetre
Rated switching distance -
5000 Millimetre
Reaction time -
5 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
100 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
NAMUR
Wavelength of the sensor -
650 Nanometre
Width sensor -
12.3 Millimetre
Turck Banner

Availability Available to order

POA
