3038027

Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: MIAD9W W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 5-15 VDC
  • Max. Range: 75 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustable via Potentiometer
  • Alignment Indicator
  • NAMUR Output in accordance with DIN 19234 (IEC/EN 60947-5-6)


Product

Manufacturer Material ID -
MIAD9W W/30
Net Weight -
0.63kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

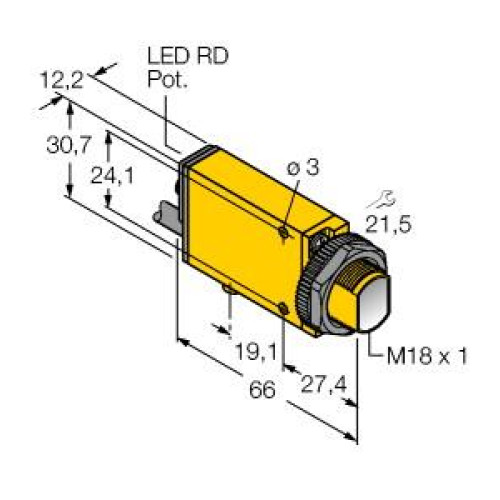

Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
66 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
75 Millimetre
Reaction time -
5 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
NAMUR
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.3 Millimetre
