2TLA050009R0112

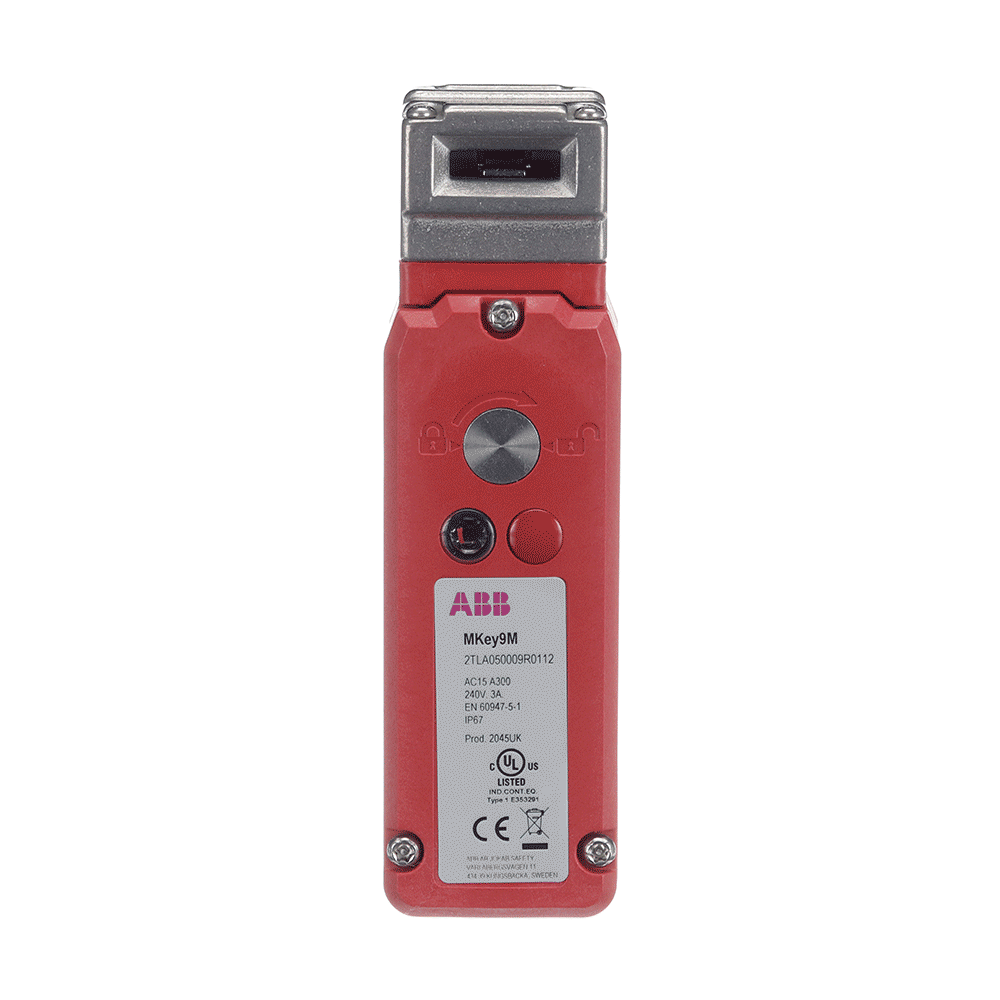

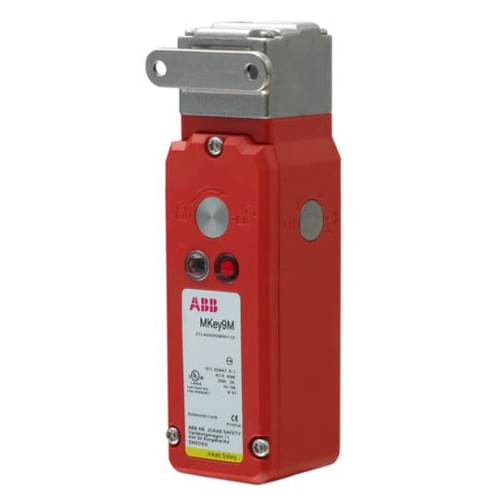

MKey9M 24VDC Switch

Manufacturer's No: MKEY9     Manufacturer: ABB
MKey9M 24VDC Switch

Availability Back Order

£302.93
  • MKey9M 24VDC Switch
  • Safety interlock switch
  • Rugged polyester housing and stainless steel head
  • 1xM20 Conduit entry
  • +24 VDC power to lock
  • Delivered with standard key
  • Mechanical safety switches for monitoring doors and hatches
  • Safe interlocking function
  • Can be used as process locks or safety locks
  • Available in different materials and sizes for various applications


Product

Manufacturer Material ID -
MKEY9
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
8536500700
Country of Origin -
GB
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

Rated operation current Ie at DC-13, 230 V -
- Ampere
Number of safety auxiliary contacts -
-
Rated control supply voltage Us magnet drive at AC 50 Hz -
- Volt
Rated control supply voltage Us magnet drive at AC 60 Hz -
- Volt
Rated operation current Ie at DC-13, 125 V -
- Ampere
Material housing -
Other
Degree of protection (IP) -
IP67
Type of interface -
None
Rated control supply voltage Us magnet drive at DC -
24 Volt
Guard locking force -
1800 Newton
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Number of contacts as change-over contact -
0
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
2000 Newton
Coating housing -
Uncoated
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
1
Height of sensor -
160 Millimetre
Housing material -
Plastic
Interface type -
Other
Length of sensor -
46 Millimetre
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
3
Rated control supply voltage magnet drive at DC -
24 Volt
Rated operation current Ie at AC-15, 125 V -
3 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at AC-15, 24 V -
3 Ampere
Rated operation current Ie at DC-13, 24 V -
0.2 Ampere
Suitable for safety functions -
Type of electric connection -
Other
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
Other
Type of switching contact -
Slow-action switch
Width sensor -
46 Millimetre
With status indication -
ABB

Availability Back Order

£302.93
