MLV41-LL-IR/115/136

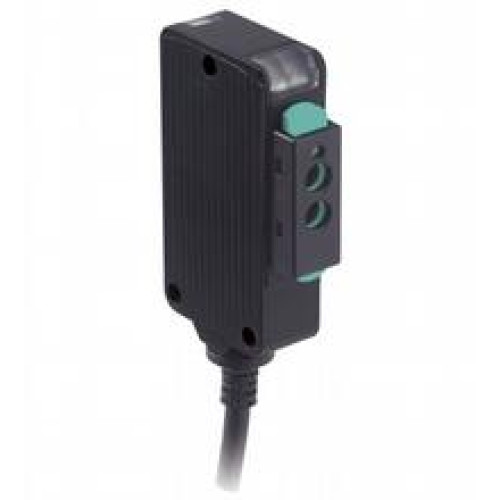

Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-

Manufacturer's No: 249779     Manufacturer: Pepperl+Fuchs
Fiber optic sensor - Sensor range: on black (6 %): up to 55 mm on Kodak white, reflection factor 90% up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable, Light source: IRED, Light type: modulated..

Availability On Request

£240.63
  • Sensor range:
    • Black (6%): up to 55 mm
    • Kodak white (reflection factor 90%): up to 160 mm with LLR 04-1.6-0.5-WC3 fiberoptic cable
  • Light source: IRED
  • Light type: modulated infrared light, 880 nm
  • Signal output: 2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
  • Switching type: light/dark on switchable
  • Connection: 2 m fixed cable, 5-pin
  • Operating voltage: 10-30 V DC
  • Ambient temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
249779
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£240.63
