2CPX041245R9999

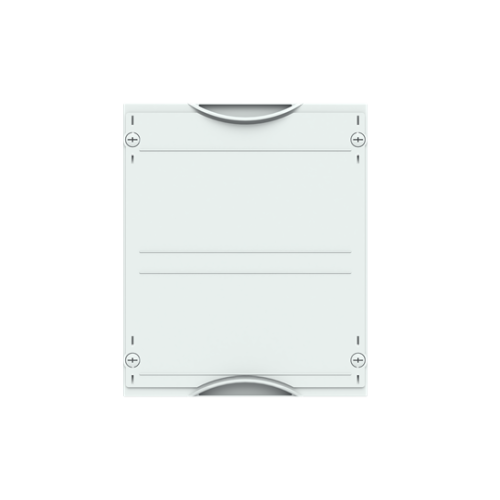

MM112 Mounting plate 300 mm x 250 mm x 200 mm , 000

Manufacturer's No: MM112     Manufacturer: ABB
MM112 Mounting plate 300 mm x 250 mm x 200 mm , 000

Availability Back Order

£91.73
  • Mounting plate dimensions: 300 mm x 250 mm x 200 mm
  • Interior fitting module for CombiLine
  • Grid unit: 2 GU = 300 mm
  • Panel width: 250 mm
  • 24 Space units
  • Mounting plates made of 2 mm sheet steel
  • Stepless adjustable via mounting bracket
  • Usable depth: 103 mm to 158 mm
  • Usable width: 188 mm
  • Usable height: 266 mm

Read more

  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable for cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
MM112
Net Weight -
2.02kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Built-in depth -
200 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Recess depth -
200 Millimetre
Width -
250 Millimetre
With cover -
ABB

Availability Back Order

£91.73
