1SAM360000R1010

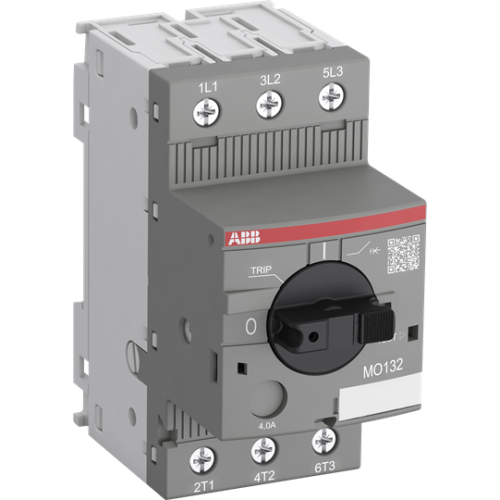

MO132-10 Manual Motor Starter Magnetic Only 10 A

Manufacturer's No: MO132-10     Manufacturer: ABB
MO132-10 Manual Motor Starter Magnetic Only 10 A

Availability Back Order

£94.80
The MO132-10 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.


Product

Manufacturer Material ID -
MO132-10
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
125 Ampere
Degree of protection (IP rating) -
IP20
Depth -
86.75 Millimetre
Device construction -
Complete device in housing
Height -
90 Millimetre
Number of poles -
3
Overload release current setting -
10 Ampere
Power loss -
6.6 Watt
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
4 Kilowatt
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated permanent current Iu -
10 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Magnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
