1SAM160000R1007

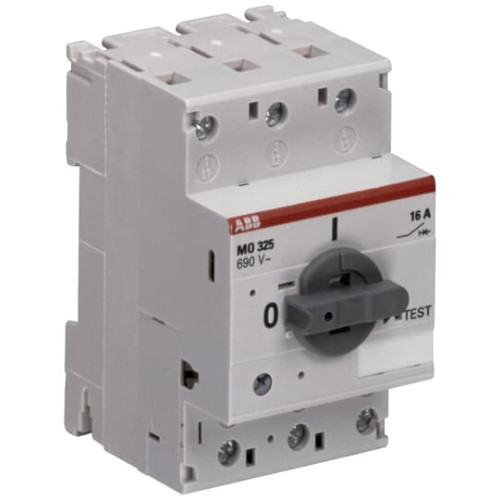

MO325-2.5 Manual Motor Starter Magnetic Only 2.5 A

Manufacturer's No: MO325     Manufacturer: ABB
MO325-2.5 Manual Motor Starter Magnetic Only 2.5 A

Availability Back Order

£81.02
  • Model: MO325-2.5 Manual Motor Starter Magnetic Only
  • Rated Operational Current: 2.5 A
  • Width: 54 mm
  • Rated Service Short-Circuit Breaking Capacity: 100 kA at 400 VAC
  • Features a built-in disconnect function
  • Trip-free mechanism for reliable motor protection
  • Rotary handle with clear switch position indication
  • Suitable for three- and single-phase applications
  • Accessories available: auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks


Product

Manufacturer Material ID -
MO325
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
BG
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation power at AC-3, 230 V -
- Kilowatt
Width -
54 Millimetre
Height -
87.5 Millimetre
Depth -
75.5 Millimetre
Rated permanent current Iu -
2.5 Ampere
Number of poles -
3
Rated operating voltage -
440 Volt
Overload release current setting -
2.5 Ampere
Degree of protection (IP) -
IP20
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Turn button
Switch off technique -
Magnetic
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
27.5 Ampere
Device construction -
Complete device in housing
ABB

Availability Back Order

£81.02
