1SAM350200R1009

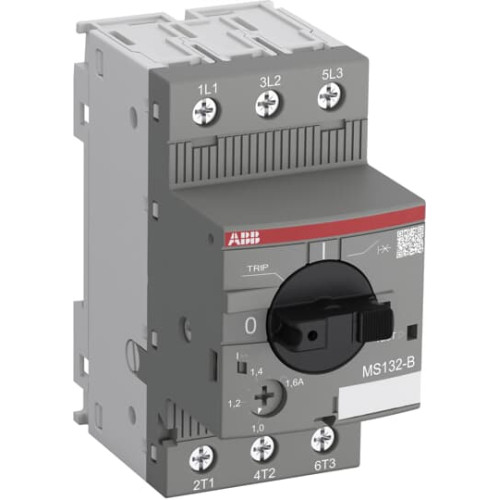

MS132-6.3B Manual Motor Starter 4.0 ... 6.3 A

Manufacturer's No: MS132-6.3B     Manufacturer: ABB
MS132-6.3B Manual Motor Starter 4.0 ... 6.3 A

Availability On Request

£110.26
  • Manual Motor Starter MS132-6.3B
  • Motor protection up to 15 kW (400 V) / 32 A
  • Width of 45 mm
  • Trip class 10 for overload or phase failure protection
  • Clear indication of faults in a separate window
  • Built-in disconnect function, temperature compensation, trip-free mechanism
  • Rotary handle with clear switch position indication
  • Suitable for three- and single-phase applications
  • Lockable handle to prevent unauthorized changes
  • Complies with latest railway rolling stock standards

Read more

  • Designed according to IEC 60077 standard
  • Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
  • Usable according to European fire and smoke safety standard EN 45545-2


Product

Manufacturer Material ID -
MS132-6.3B
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85362010
UNSPSC -
39122330

Technical Specification

Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
78.8 Ampere
Degree of protection (IP rating) -
IP20
Depth -
86.75 Millimetre
Device construction -
Complete device in housing
Height -
90 Millimetre
Number of poles -
3
Overload release current setting -
4 Ampere
Phase failure sensitive -
Power loss -
5.4 Watt
Rated operating voltage -
250 Volt
Rated operation power at AC-3, 230 V -
2.2 Kilowatt
Rated operation power at AC-3, 400 V -
2.2 Kilowatt
Rated permanent current Iu -
6.3 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere
Switch off technique -
Thermomagnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
45 Millimetre
With thermal overload protection -
