1SAM451000R1016

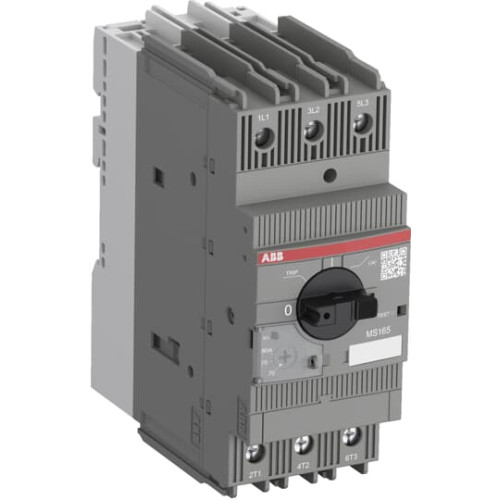

MS165-54 Manual Motor Starter 40 ... 54 A

Manufacturer's No: MS165-54     Manufacturer: ABB
MS165-54 Manual Motor Starter 40 ... 54 A

Availability Back Order

£242.70
MS165 is a compact and powerful range for motor protection up to 30 kW (400 V) / 60 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS116/MS132/MS165 range.


Product

Manufacturer Material ID -
MS165-54
Net Weight -
0.97kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
Rated short-circuit breaking capacity lcu at 400 V, AC -
50 kiloampere
Adjustment range undelayed short-circuit release -
810 Ampere
Degree of protection (IP rating) -
IP20
Depth -
122.1 Millimetre
Device construction -
Complete device in housing
Height -
142.65 Millimetre
Number of poles -
3
Overload release current setting -
40 Ampere
Phase failure sensitive -
Power loss -
20.97 Watt
Rated operating voltage -
250 Volt
Rated operation power at AC-3, 230 V -
22 Kilowatt
Rated operation power at AC-3, 400 V -
22 Kilowatt
Rated permanent current Iu -
54 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
50 kiloampere
Switch off technique -
Thermomagnetic
Type of control element -
Rotating button
Type of electrical connection of main circuit -
Screw connection
Width -
55 Millimetre
With thermal overload protection -
ABB
