1SAM150000R1002

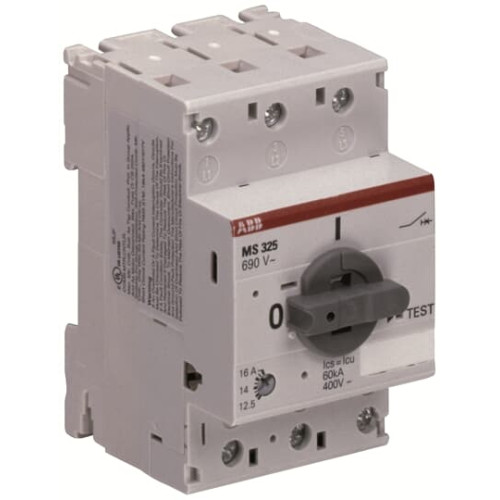

MS325-0.25 Manual Motor Starter 0.16 ... 0.25 A

Manufacturer's No: MS325     Manufacturer: ABB
MS325-0.25 Manual Motor Starter 0.16 ... 0.25 A

Availability Back Order

POA
  • Model: MS325-0.25 Manual Motor Starter
  • Rated Operational Current: 0.25 A
  • Width: 54 mm
  • Rated Service Short-Circuit Breaking Capacity: 100 kA at 400 VAC
  • Trip Class: 10A
  • Features a built-in disconnect function
  • Offers temperature compensation and a trip-free mechanism
  • Equipped with a rotary handle with clear switch position indication
  • Suitable for three- and single-phase applications
  • Accessories available: auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks, locking devices


Product

Manufacturer Material ID -
MS325
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
BG
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 230 V -
- Kilowatt
Width -
54 Millimetre
Height -
87.5 Millimetre
Depth -
75.5 Millimetre
Rated operation power at AC-3, 400 V -
0.1 Kilowatt
Rated permanent current Iu -
0.3 Ampere
Number of poles -
3
Rated operating voltage -
440 Volt
Overload release current setting -
0.16 Ampere
Degree of protection (IP) -
IP20
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Turn button
Switch off technique -
Thermomagnetic
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
2.4 Ampere
Phase failure sensitive -
Device construction -
Complete device in housing
