2CKA006200A0086

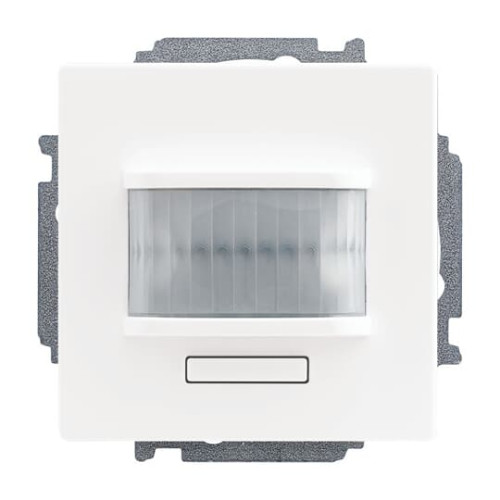

MSA-F-1.1.1-84-WL WL-Mov. detector/act. 1g

Manufacturer's No: MSA-F-1.1.1-84-WL     Manufacturer: ABB
MSA-F-1.1.1-84-WL WL-Mov. detector/act. 1g

Availability On Request

£210.21
  • Model: MSA-F-1.1.1-84-WL WL-Mov. detector/act. 1g
  • Select lens for animal access detection
  • Wireless communication with free@home system
  • Automatic switching of ABB-free@home® actuators based on movement and brightness
  • Programmable switch-off delay via web interface
  • Suitable for 230 V~ consumers
  • Integrated switch actuator
  • Pre-configured switching function, no prior programming required
  • Configuration changeable via web interface (groups, scenes, etc.)
  • 3-wire connection (neutral conductor required)

Read more

  • 230 V extension unit input (On/Off)
  • Equipped with fixing claws


Product

Manufacturer Material ID -
MSA-F-1.1.1-84-WL
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Number of binary inputs -
-
Diameter detection range on floor -
- Metre
Material quality -
Thermoplastic
Max. transmission range frontally -
6 Metre
Max. transmission range sideways -
3 Metre
Substation input -
RAL-number (akin) -
9016
Surface finishing -
Glossy
Animal zone -
Auxiliary input -
Colour -
White
Depth -
56 Millimetre
Detection angle horizontal -
180 Degrees
Detection angle vertical -
19 Degrees
Height -
71 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Max. duty cycle -
30 Minute
Max. reach frontally -
6 Metre
Min. switch-on time -
30 Second
Minimum depth of back box -
32 Millimetre
Model -
Movement sensor
Mounting method -
Flush mounted
Number of channels -
1
Optimum mounting height -
1.1 Metre
Other bus systems -
Other
Radio frequent bidirectional -
RAL-number (similar) -
9016
Recess depth -
32 Millimetre
Response value luminosity adjustable -
Staircase monitoring -
Surface finish -
Glossy
Surface protection -
Untreated
Switching power -
2300 Watt
Width -
71 Millimetre
ABB

Availability On Request

£210.21
