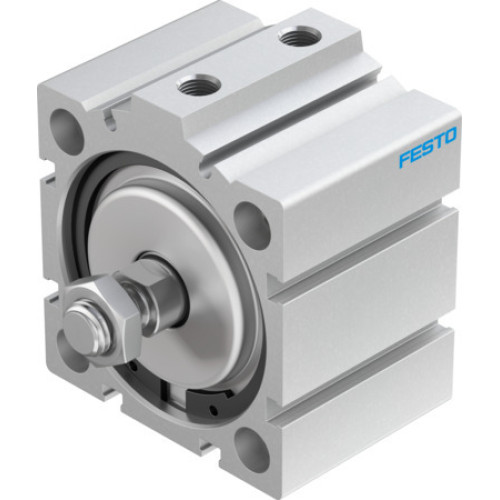

ADVC-63-15-A-P Short-stroke cylinder

Manufacturer's No: ADVC-63-15-A-P     Manufacturer: Festo
ADVC-63-15-A-P Short-stroke cylinder

Availability Available to order

£176.675
  • Short-stroke cylinder ADVC-63-15-A-P
  • Stroke: 15 mm
  • Piston diameter: 63 mm
  • Based on standards: ISO 6431, Hole pattern, VDMA 24562
  • Cushioning: Flexible cushioning rings/plates at both ends
  • Operating pressure: 0.06 MPa to 1 MPa (0.6 bar to 10 bar, 8.7 psi to 145 psi)
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C

Read more

  • Theoretical force at 0.6 MPa (6 bar, 87 psi): 1750 N (return stroke), 1870 N (advance stroke)
  • Moving mass: 178 g (162 g for 0 mm stroke, additional 16 g per 10 mm stroke)
  • Product weight: 663 g (578 g for 0 mm stroke, additional 80 g per 10 mm stroke)
  • Type of mounting: With through-hole, with accessories, or either
  • Pneumatic connection: G1/8
  • Material: Cover - Wrought aluminium alloy, anodised; Seals - NBR, TPE-U(PU); Housing - Wrought aluminium alloy, anodised; Piston rod - High-alloy steel


Product

Manufacturer Material ID -
ADVC-63-15-A-P
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
84123100
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Coating housing -
UN
Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Number of protected semiconductor outputs -
-
Number of protected contact energized outputs -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Max. output current at protected output -
- Milliampere
Supply voltage -
- Volt
Category according to EN 954-1 -
UN
Type of interface -
UN
Diameter sensor -
- Millimetre
Performance level acc. EN ISO 13849-1 -
UN
Interference resistance to magnetic fields -
UN
Material housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Other
Interface type -
None
Length of sensor -
26 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Switching distance -
4 Millimetre
Switching frequency -
25 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
2-wire
Voltage type -
AC/DC
Width sensor -
12 Millimetre
