5105646

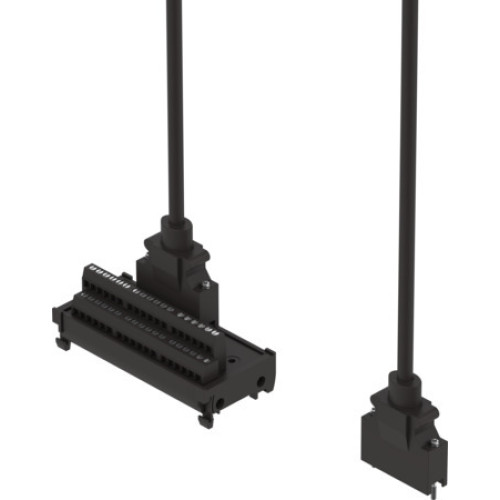

NEBC-S2G36-K-0.5-N-C2W36-S7 Control cable

Manufacturer's No: NEBC-S2G36-K-0.5-N-C2W36-S7     Manufacturer: Festo
NEBC-S2G36-K-0.5-N-C2W36-S7 Control cable

Availability On Request

£48.73
  • Control cable NEBC-S2G36-K-0.5-N-C2W36-S7
  • Plug SCSI, straight, 36-pin/-wire, PVC cable, 0.5 m
  • Terminal strip with screw terminals, angled, IP20
  • Electrical connection 1: Field device side, angular design, plugs, SCSI connector, 36 connections/cores
  • Electrical connection 2: Controller side, angular design, terminal strip, screw terminal connector, 36 connections/cores, H-rail mounting
  • Operational voltage range DC: 0-30 V, AC: 0-30 V, current rating at 40°C: 1.5 A, surge immunity: 0.5 KV
  • Cable length: 0.5 m, standard characteristic, bending radius: fixed 74 mm, moving 110 mm, diameter: 7.4 mm, structure: 18 x 2 x 0.09 mm²
  • Degree of protection: IP20, RoHS-compliant, pollution degree: 1, corrosion resistance class: 0
  • Material: PVC cable sheath (black), PA/PBT housing (green/black), PVC insulating sheath
  • Ambient temperature: -40°C to 80°C

Read more

  • Compliance: CE mark (EU RoHS Directive), UKCA marking (UK RoHS instructions), LABS (PWIS) conformity: VDMA24364 zone III


Product

Manufacturer Material ID -
NEBC-S2G36-K-0.5-N-C2W36-S7
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
UNSPSC -
26121630
