1450369

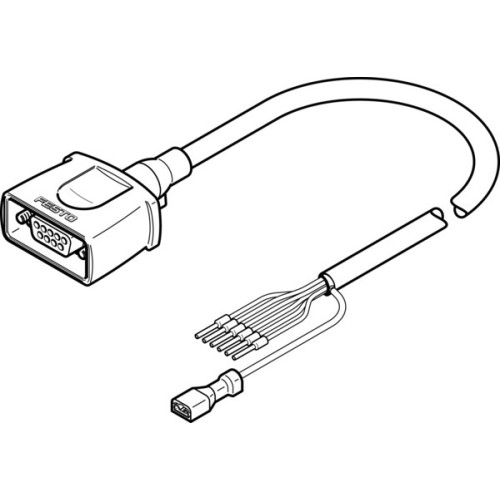

NEBM-S1G9-E-2.5-Q5-LE6 Motor cable

Manufacturer's No: NEBM-S1G9-E-2.5-Q5-LE6     Manufacturer: Festo
NEBM-S1G9-E-2.5-Q5-LE6 Motor cable

Availability Back Order

£76.70
  • Motor cable NEBM-S1G9-E-2.5-Q5-LE6 - Cable length: 2.5 m - Cable diameter: 6.2 mm - Suitable for energy chains - Shielding: Yes - Bending radius, moving cable: 62 mm - Cable structure: 6 x 0.34 mm² - Nominal cross-section conductor: 0.34 mm² - Material cable sheath: TPE-U(PUR) - Cable sheath color: Grey

  • Electrical Connections - Field device side: 9-pin/-wire Sub-D socket - Controller side: 6-pin/-wire open end - Number of connections/cores: 9 (Field device side), 6 (Controller side) - Connection pattern: 995638

  • Electrical Specifications - Operational voltage range DC: 0 V to 72 V - Nominal operating voltage DC: 24 V

  • Environmental Conditions - Ambient temperature: -40°C to 80°C - Ambient temperature with moving cable: -5°C to 80°C - Degree of protection: IP65 - Corrosion resistance class CRC: 0 (No corrosion stress)

  • Compliance and Markings - CE mark: In accordance with EU RoHS Directive - UKCA marking: To UK RoHS instructions - LABS (PWIS) conformity: VDMA24364-B2-L - RoHS-compliant materials



Product

Manufacturer Material ID -
NEBM-S1G9-E-2.5-Q5-LE6
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629
Festo

Availability Back Order

£76.70
