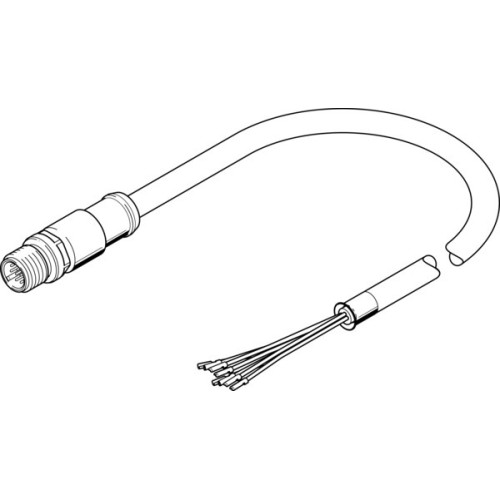

NEBS-SM12G12-E-0.5-N-LE12 Connecting cable

Manufacturer's No: NEBS-SM12G12-E-0.5-N-LE12     Manufacturer: Festo
NEBS-SM12G12-E-0.5-N-LE12 Connecting cable

Availability On Request

£70.15
  • Connecting cable NEBS-SM12G12-E-0.5-N-LE12
  • Plug M12 (A-coded), straight, 12-pin/-wire
  • Cable TPE-U(PUR), 0.5 m, suitable for energy chains
  • Conforms to standard: EN 61076-2-101
  • Frequency of connection: 100
  • Electrical connection 1: Field device side, round, plugs, M12x1, A-coded, 12 connections/cores, screw-type lock
  • Electrical connection 2: Controller side, cable, open end, 12 connections/cores
  • Operational voltage range DC: 0-30 V, AC: 0-30 V
  • Current rating at 40°C: 1.5 A, surge immunity: 0.5 KV
  • Cable length: 0.5 m, suitable for energy chains

Read more

  • Bending radius: Fixed cable 32 mm, moving cable 65 mm
  • Cable diameter: 6.5 mm, cable structure 12 x 0.25 mm²
  • Degree of protection: IP67, RoHS-compliant
  • Ambient temperature: -5°C to 70°C, moving cable: -5°C to 70°C
  • CE mark, UKCA marking, LABS (PWIS) conformity
  • Pollution degree: 3, corrosion resistance class CRC: 1
  • Material: Cable sheath and housing - TPE-U(PUR) in black, screw-type lock - die-cast zinc, nickel-plated, electrical contact - gold-plated brass


Product

Manufacturer Material ID -
NEBS-SM12G12-E-0.5-N-LE12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
30102206
