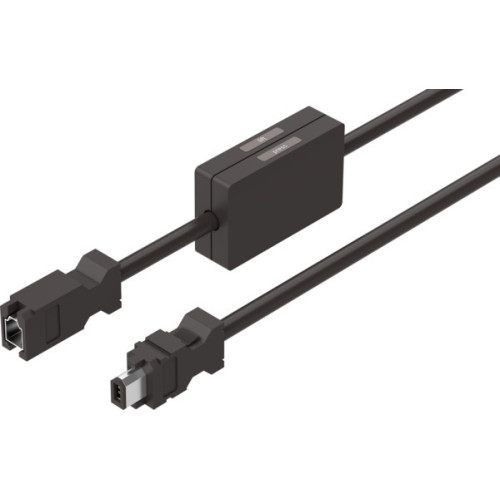

NEFM-REG6-K-0.5-B-REG6 Adapter

Manufacturer's No: NEFM-REG6-K-0.5-B-REG6     Manufacturer: Festo
NEFM-REG6-K-0.5-B-REG6 Adapter

Availability Back Order

£104.43
  • Adapter model: NEFM-REG6-K-0.5-B-REG6
  • Additional function: for battery
  • Product weight: 66 g
  • Electrical connection 1:
    • Function: Field device side
    • Design: Angular
    • Connection type: Socket
    • Cable outlet: Straight
    • Connector system: Connection pattern RE
    • Number of connections/cores: 6
    • Used connections/cores: 6
    • Connection pattern: 995793
  • Function: Field device side
  • Design: Angular
  • Connection type: Socket
  • Cable outlet: Straight
  • Connector system: Connection pattern RE
  • Number of connections/cores: 6

Read more

  • Used connections/cores: 6
  • Connection pattern: 995793
  • Electrical connection 2:
    • Function: Controller side
    • Design: Angular
    • Connection type: Plugs
    • Cable outlet: Straight
    • Connector system: Connection pattern RE
    • Number of connections/cores: 6
    • Used connections/cores: 6
    • Connection pattern: 995792
  • Function: Controller side
  • Design: Angular
  • Connection type: Plugs
  • Cable outlet: Straight
  • Connector system: Connection pattern RE
  • Number of connections/cores: 6
  • Used connections/cores: 6
  • Connection pattern: 995792
  • Operational voltage range DC: 0 V to 30 V
  • Operational voltage range AC: 0 V to 30 V
  • Current rating at 40°C: 1.6 A
  • Immunity to surge: 2 KV
  • Shielding: Yes
  • Cable length: 0.5 m
  • Cable characteristic: Standard
  • Bending radius, fixed cable: 68 mm
  • Cable diameter: 6.8 mm
  • Cable structure: 4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²)
  • Nominal cross-section conductor: 0.081 mm², 0.205 mm²
  • Conductor nominal cross-section: AWG24, AWG28
  • Degree of protection: IP20 (In assembled state)
  • Ambient temperature: -40°C to 80°C
  • CE mark: In accordance with EU RoHS Directive
  • UKCA marking: To UK RoHS instructions
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Materials: RoHS-compliant, PVC cable sheath (Black), PVC housing (Grey), PVC insulating sheath
  • Pollution degree: 3
  • Corrosion resistance class CRC: 0 (No corrosion stress)


Product

Manufacturer Material ID -
NEFM-REG6-K-0.5-B-REG6
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
UNSPSC -
30102206
Festo

Availability Back Order

£104.43
