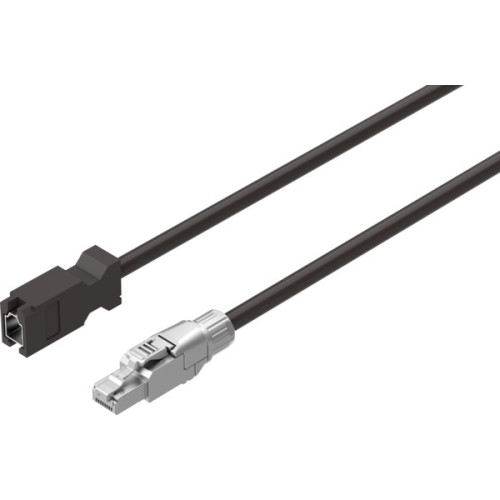

NEFM-REG6-K-0.5-R3G8 Adapter

Manufacturer's No: NEFM-REG6-K-0.5-R3G8     Manufacturer: Festo
NEFM-REG6-K-0.5-R3G8 Adapter

Availability Back Order

£30.64
  • NEFM-REG6-K-0.5-R3G8 Adapter
  • Weight: 56 g
  • Electrical Connection 1:
    • Function: Field device side
    • Design: Angular
    • Connection Type: Socket
    • Cable Outlet: Straight
    • Connector System: Connection pattern RE
    • Number of Connections/Cores: 6
    • Used Connections/Cores: 6
    • Connection Pattern: 995793
  • Function: Field device side
  • Design: Angular
  • Connection Type: Socket
  • Cable Outlet: Straight
  • Connector System: Connection pattern RE
  • Number of Connections/Cores: 6
  • Used Connections/Cores: 6

Read more

  • Connection Pattern: 995793
  • Electrical Connection 2:
    • Function: Controller side
    • Design: Angular
    • Connection Type: Plugs
    • Cable Outlet: Straight
    • Connector System: RJ45
    • Number of Connections/Cores: 8
    • Used Connections/Cores: 6
    • Connection Pattern: 995653
  • Function: Controller side
  • Design: Angular
  • Connection Type: Plugs
  • Cable Outlet: Straight
  • Connector System: RJ45
  • Number of Connections/Cores: 8
  • Used Connections/Cores: 6
  • Connection Pattern: 995653
  • Operational Voltage Range DC: 0 V to 30 V
  • Operational Voltage Range AC: 0 V to 30 V
  • Current Rating at 40°C: 1.6 A
  • Immunity to Surge: 2 KV
  • Shielding: Yes
  • Cable Length: 0.5 m
  • Cable Characteristic: Standard
  • Bending Radius, Fixed Cable: 68 mm
  • Cable Diameter: 6.8 mm
  • Cable Structure: 4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²)
  • Nominal Cross Section Conductor: 0.081 mm², 0.205 mm²
  • Conductor Nominal Cross Section: AWG24, AWG28
  • Degree of Protection: IP20 (In assembled state)
  • Ambient Temperature: -40°C to 80°C
  • CE Mark: In accordance with EU RoHS Directive
  • UKCA Marking: To UK RoHS instructions
  • LABS (PWIS) Conformity: VDMA24364 zone III
  • Materials: RoHS-compliant
  • Pollution Degree: 3
  • Corrosion Resistance Class CRC: 0 (No corrosion stress)
  • Material Cable Sheath: PVC (Black)
  • Material Housing: PVC (Grey)
  • Material Insulating Sheath: PVC


Product

Manufacturer Material ID -
NEFM-REG6-K-0.5-R3G8
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CN
UNSPSC -
39121402
