1634859

Inductive Sensor, For the Food Industry

Manufacturer's No: NI15U-EM18WD-AP6X-H1141/3GD     Manufacturer: Turck Banner
Inductive Sensor, For the Food Industry

Availability On Request

£145.35
  • Inductive sensor for the food industry
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 15 mm

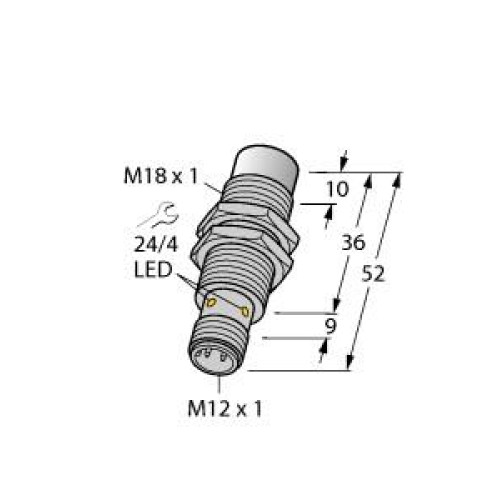

  • Non-flush M18 x 1 threaded barrel made of stainless steel 1.4404
  • Front cap made of liquid crystal polymer
  • Factor 1 for all metals
  • Resistant to magnetic fields
  • Temperature range: -40°C to +100°C
  • High protection class IP69K for harsh environments
  • Special double-lip seal for added protection

Read more

  • Resistant to common acidic and alkaline cleaning agents
  • Laser engraved label for permanent legibility
  • DC 3-wire, NO contact, PNP output
  • M12 x 1 male connector
  • ATEX category II 3 G, Ex zone 2
  • ATEX category II 3 D, Ex zone 22


Product

Manufacturer Material ID -
NI15U-EM18WD-AP6X-H1141/3GD
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
10 Volt
Switching distance -
15 Millimetre
Switching frequency -
1500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
