4280800

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI40U-CP40-FDZ30X2     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

POA
  • Inductive sensor with extended switching distance
  • Operating voltage: 20-250 VAC / 10-300 VDC
  • Rated switching distance: 40 mm

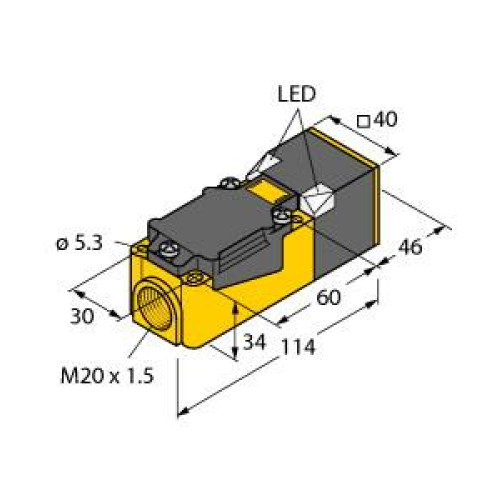

  • Non-flush rectangular design with a height of 40 mm
  • Active face can be oriented in 9 directions
  • Made of plastic material (PBT-GF30-V0)
  • Features high luminance corner LEDs for visibility
  • Factor 1 for all metals
  • Protection class: IP68
  • Resistant to magnetic fields

Read more

  • Extended temperature range
  • High switching frequency
  • AC 2-wire: 20-250 VAC
  • DC 2-wire: 10-300 VDC
  • Programmable as NC (Normally Closed) or NO (Normally Open)
  • Terminal chamber for easy installation


Product

Manufacturer Material ID -
NI40U-CP40-FDZ30X2
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
20 Volt
Switching distance -
40 Millimetre
Switching frequency -
10 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Programmable/configurable
Voltage type -
AC/DC
Width sensor -
40 Millimetre
