Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI75U-Q80-AP6X2-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

POA
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 75 mm

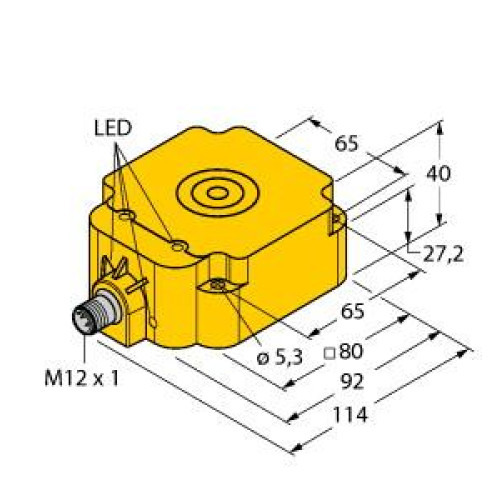

  • Non-flush rectangular design with a height of 40 mm
  • Active face on top for easy access
  • Material: Plastic (PBT-GF30-V0)
  • 4 LEDs for clear visibility of supply voltage and switching state
  • Factor 1 for all metals
  • Increased switching distance for enhanced performance
  • Protection class: IP68 for durability in harsh environments

Read more

  • Resistant to magnetic fields
  • Auto-compensation feature protects against pre-damping
  • Partially embeddable design
  • DC 3-wire configuration
  • NO contact with PNP output
  • M12 x 1 male connector


Product

Manufacturer Material ID -
NI75U-Q80-AP6X2-H1141
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
92 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
75 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
80 Millimetre
