1645150

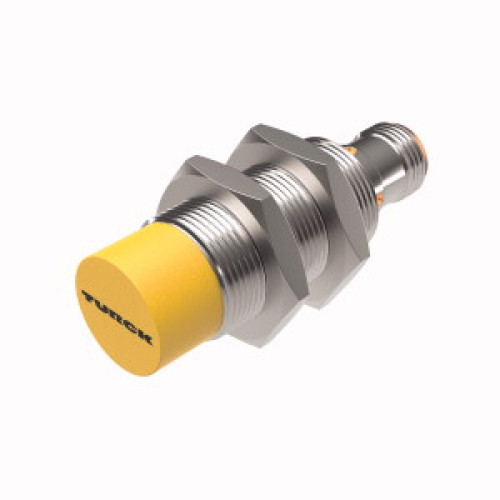

Inductive Sensor

Manufacturer's No: NI12U-M18-AN6X-H1141     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£91.29
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 12 mm
  • Non-flush, Threaded Barrel, M18 x 1, Chrome-plated Brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • DC 3-wire, 10-30 VDC

Read more

  • NO Contact, NPN output
  • M12 x 1 Male Connector


Product

Manufacturer Material ID -
NI12U-M18-AN6X-H1141
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
12 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
NPN
Voltage type -
DC
Turck Banner

Availability On Request

£91.29
