1650130

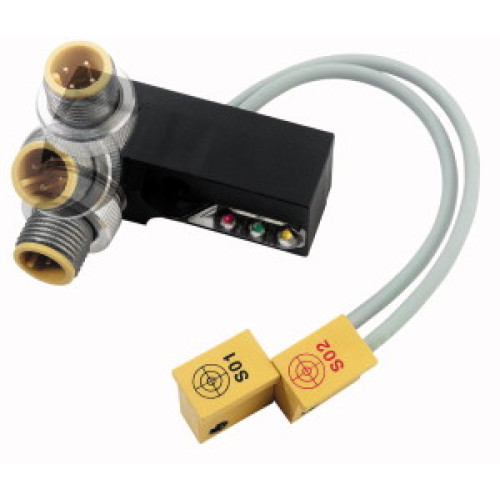

Inductive Sensor, Monitoring Kit for Power Clamps

Manufacturer's No: NI2-ISI-0.055-BDS-2AP6X3-H1141/S34     Manufacturer: Turck Banner
Inductive Sensor, Monitoring Kit for Power Clamps

Availability On Request

£199.92
  • Inductive sensor for power clamps
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 2 mm
  • Non-flush design
  • Cable length: 0.055 m
  • BDS power block with two connected sensors and LEDs
  • Robust rotatable connector (0°, 45°, 90°) for optimal cable routing
  • Material: Plastic (Trogamid), resistant to magnetic fields (up to 100 mT for DC and AC fields)
  • 2 x NO contact, PNP output
  • DC 4-wire, 10-30 VDC


Product

Manufacturer Material ID -
NI2-ISI-0.055-BDS-2AP6X3-H1141/S34
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

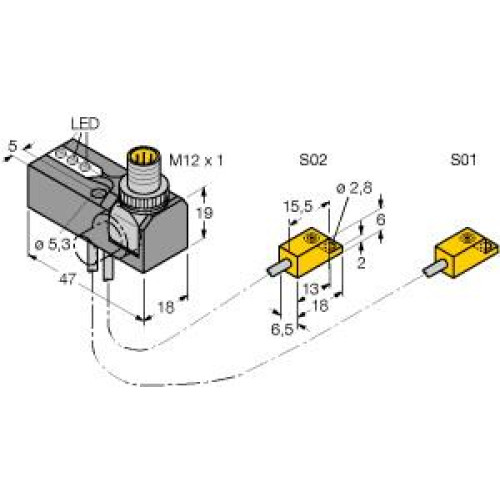

Technical Specification

Construction type housing -
Special construction
Height of sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
47 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
2 Millimetre
Switching frequency -
30 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
18 Millimetre
Turck Banner

Availability On Request

£199.92
