1650074

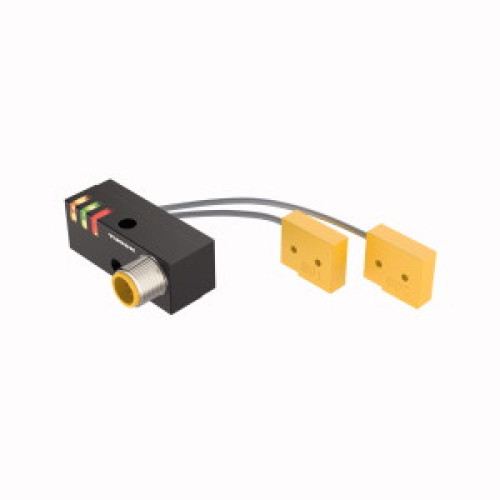

Inductive Sensor, Monitoring Kit for Power Clamps

Manufacturer's No: NI2-Q6.5-AP6-0.15-FS4.4X3/S304     Manufacturer: Turck Banner
Inductive Sensor, Monitoring Kit for Power Clamps

Availability On Request

£190.86
  • Inductive Sensor for Power Clamps
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 2 mm
  • Non-flush design
  • Cable Length: 0.15 m
  • Q6.5 power block with two connected sensors and LEDs
  • Relocatable block with adjustable angle from 0° to 90°
  • Cross drilling for flexible cable routing
  • Material: Plastic (PBT-GF20-V0)
  • Resistant to magnetic fields up to 100 mT

Read more

  • 2 x Normally Open (NO) contacts
  • PNP output
  • DC 4-wire configuration
  • Suitable for DC and AC fields


Product

Manufacturer Material ID -
NI2-Q6.5-AP6-0.15-FS4.4X3/S304
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

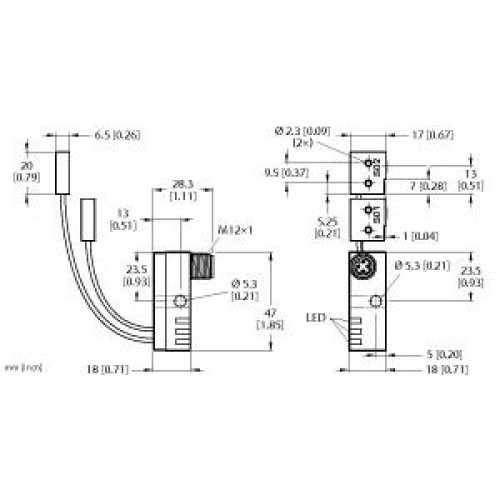

Technical Specification

Construction type housing -
Special construction
Height of sensor -
18 Millimetre
Housing material -
Metal
Length of sensor -
47 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
2 Millimetre
Switching frequency -
30 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
18 Millimetre
