Inductive Sensor, With Extended Temperature Range

Manufacturer's No: NI20-CP40-VP4X2/S97     Manufacturer: Turck Banner
Inductive Sensor, With Extended Temperature Range

Availability On Request

£197.37
  • Inductive sensor with extended temperature range
  • Operating voltage: 10-65 VDC
  • Rated switching distance: 20 mm

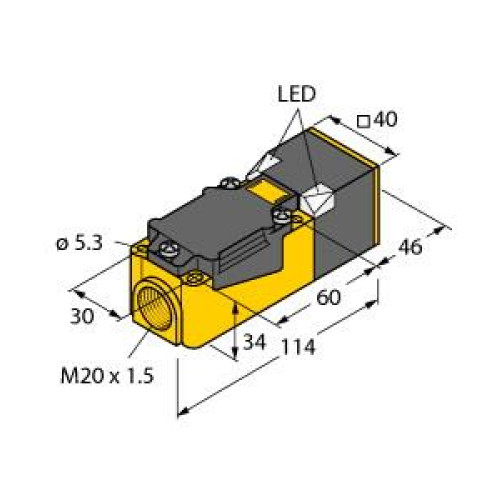

  • Non-flush rectangular sensor with a height of 40 mm
  • Active face can be oriented in 9 directions
  • Made of plastic material PBT-GF30-V0
  • Features high luminance corner LEDs
  • Offers optimum view of supply voltage and switching state from any position
  • Temperature range up to -40°C
  • DC 4-wire sensor with changeover contact

Read more

  • PNP output
  • Equipped with a terminal chamber


Product

Manufacturer Material ID -
NI20-CP40-VP4X2/S97
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Switching frequency -
150 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
40 Millimetre
