1011121

Inductive Sensor, With Increased Temperature Range

Manufacturer's No: NI20-CP40-Y1X/S100     Manufacturer: Turck Banner
Inductive Sensor, With Increased Temperature Range

Availability On Request

£128.52
  • Inductive sensor with increased temperature range up to +100°C
  • Rated switching distance: 20 mm

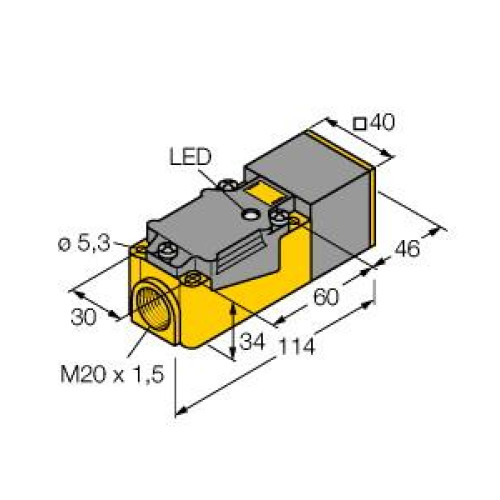

  • Non-flush rectangular design with a height of 40 mm
  • Active face can be oriented in 9 directions
  • Made of plastic material PBT-GF30-VO
  • Features high-luminance corner LEDs for optimum visibility
  • Operates on DC 2-wire system with a nominal voltage of 8.2 VDC
  • Output according to DIN EN 60947-5-6 (NAMUR) standards
  • Equipped with a terminal chamber
  • ATEX category II 2 G, Ex Zone 1 and ATEX category II 1 D, Ex Zone 20 for temperatures up to +70°C

Read more

  • SIL 2 rated according to IEC 61508


Product

Manufacturer Material ID -
NI20-CP40-Y1X/S100
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 1D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
114 Millimetre
Mechanical mounting condition for sensor -
Not flat
Performance level acc. to EN ISO 13849-1 -
Level c
SIL according to IEC 61508 -
None
Suitable for safety functions -
Switching distance -
20 Millimetre
Switching frequency -
150 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switching output -
NAMUR
Voltage type -
DC
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£128.52
