1646100

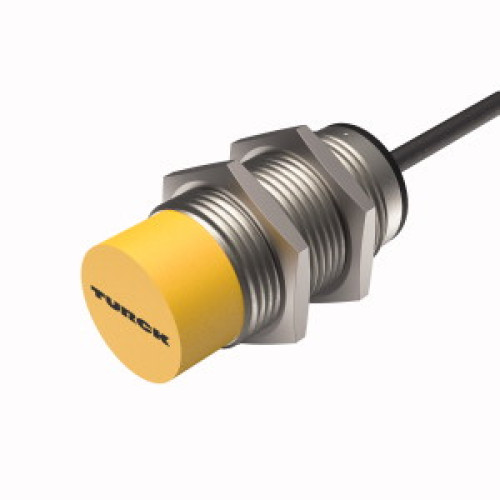

Inductive Sensor

Manufacturer's No: NI20U-M30-AP6X     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£96.53
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 20 mm
  • Non-flush
  • Cable Length: 2 m
  • M30 x 1.5 Threaded Tube, Chrome-plated Brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended Temperature Range

Read more

  • High Switching Frequency
  • DC 3-Wire
  • NO Contact
  • PNP Output
  • Cable Connection


Product

Manufacturer Material ID -
NI20U-M30-AP6X
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
64 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Cable
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
