Inductive Sensor

Manufacturer's No: NI20U-MT30-VP4X-H1141     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£167.16
  • Inductive Sensor
  • Operating Voltage: 10-65 VDC
  • Rated Switching Distance: 20 mm

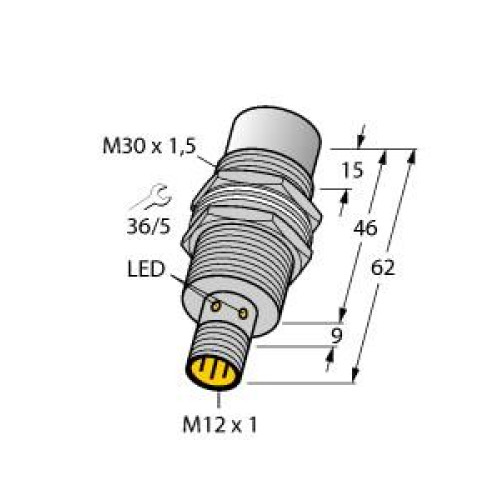

  • Non-flush, Threaded Barrel: M30 x 1.5, Brass, PTFE-coated
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended Temperature Range
  • High Switching Frequency
  • DC 4-wire, 10-65 VDC

Read more

  • Changeover Contact, PNP Output
  • Connector: M12 x 1 Male


Product

Manufacturer Material ID -
NI20U-MT30-VP4X-H1141
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
20 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
