1537802 {T}

Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Manufacturer's No: NI25-CK40-LIU-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output, Operating voltage 15…30 VDC

Availability Available to order

£204.66
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 5 mm to 25 mm

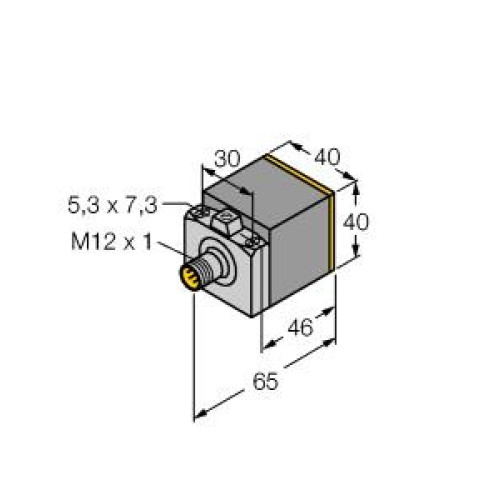

  • Non-flush rectangular sensor with a height of 40 mm
  • Active face can be oriented in 5 directions
  • Material: Plastic (PBT-GF30-V0)
  • 4-wire sensor
  • Analog output options: 0-10 V and 0-20 mA
  • Connector: M12 x 1 male


Product

Manufacturer Material ID -
NI25-CK40-LIU-H1141
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
65 Millimetre
Limiting frequency -
30 Hertz
Material active area of sensor -
Plastic
Measuring range length -
5 Millimetre
Mechanical mounting condition for sensor -
Not flat
Operating voltage -
15 Volt
Relative linearity deflection -
5 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Width sensor -
40 Millimetre
Turck Banner

Availability Available to order

£204.66
