1568803 {T}

Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Manufacturer's No: NI25U-CK40-VP4X2-H1141     Manufacturer: Turck Banner
Inductive Sensor, Operating voltage 10…65 VDC, Rated switching distance

Availability Available to order

£149.18
  • Inductive Sensor
  • Operating Voltage: 10-65 VDC
  • Rated Switching Distance: 25 mm

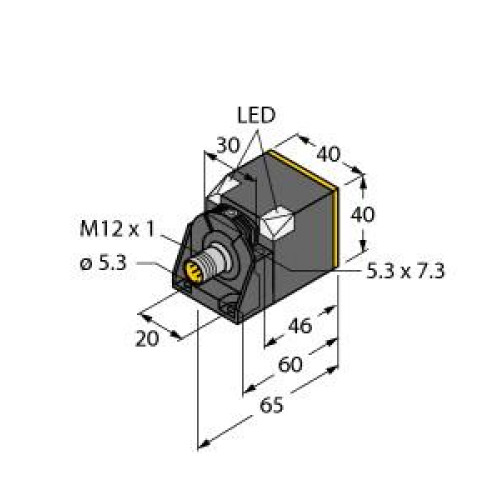

  • Non-flush, Rectangular design with a height of 40 mm
  • Active face can be oriented in 5 directions
  • Material: Plastic (PBT-GF30-V0)
  • High luminance corner LEDs
  • Optimal visibility of supply voltage and switching state from any angle
  • Factor 1 sensing for all metals
  • IP68 protection class

Read more

  • Resistant to magnetic fields
  • Extended temperature range
  • High switching frequency
  • Configuration: DC 4-wire
  • Connector: M12 x 1 male connector
  • Output: PNP, Changeover contact


Product

Manufacturer Material ID -
NI25U-CK40-VP4X2-H1141
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
65 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
25 Millimetre
Switching frequency -
250 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
40 Millimetre
Turck Banner

Availability Available to order

£149.18
