1569522

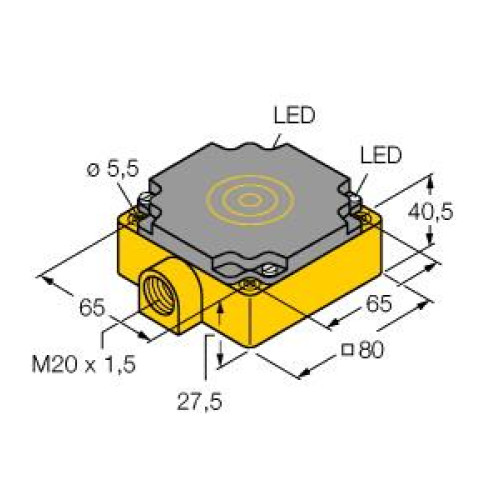

Inductive Sensor, With Extended Temperature Range

Manufacturer's No: NI40-CP80-VP4X2/S97     Manufacturer: Turck Banner
Inductive Sensor, With Extended Temperature Range

Availability On Request

£309.20
  • Inductive sensor with extended temperature range
  • Operating voltage: 10 to 65 VDC
  • Rated switching distance: 40 mm
  • Non-flush rectangular sensor, height: 41 mm
  • Material: Plastic (PBT-GF30-V0)
  • Temperature range: Up to -40°C
  • DC 4-wire sensor
  • Output: PNP changeover contact
  • Terminal chamber included


Product

Manufacturer Material ID -
NI40-CP80-VP4X2/S97
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Height of sensor -
41 Millimetre
Housing material -
Plastic
Length of sensor -
80 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
40 Millimetre
Switching frequency -
100 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Clamp
Type of switch function -
Change-over contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
80 Millimetre
Turck Banner

Availability On Request

£309.20
