4635808

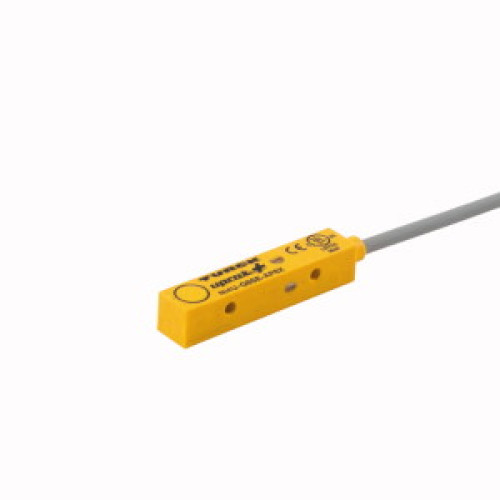

Inductive Sensor, With Extended Switching Distance

Manufacturer's No: NI4U-Q8SE-AP6X-V1131     Manufacturer: Turck Banner
Inductive Sensor, With Extended Switching Distance

Availability On Request

£107.75
  • Inductive sensor with extended switching distance
  • Operating voltage: 10-30 VDC
  • Rated switching distance: 4 mm
  • Non-flush rectangular design with a height of 8 mm
  • Active face on top
  • Factor 1 for all metals
  • Increased switching distance
  • Protection class: IP68
  • Resistant to magnetic fields
  • Auto-compensation protects against pre-damping

Read more

  • Flush mounted installation on up to 4 sides
  • DC 3-wire, 10-30 VDC
  • NO contact, PNP output
  • M8 x 1 male connector


Product

Manufacturer Material ID -
NI4U-Q8SE-AP6X-V1131
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
39122216

Technical Specification

Coating housing -
Other
Construction type housing -
Cuboid
Height of sensor -
8 Millimetre
Housing material -
Plastic
Length of sensor -
40 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
4 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
8 Millimetre
