1644150

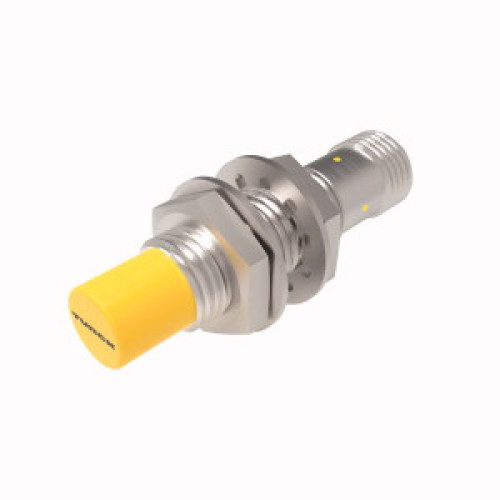

Inductive Sensor

Manufacturer's No: NI8U-M12-AN6X-H1141     Manufacturer: Turck Banner
Inductive Sensor

Availability On Request

£81.23
  • Inductive Sensor
  • Operating Voltage: 10-30 VDC
  • Rated Switching Distance: 8 mm
  • Non-flush

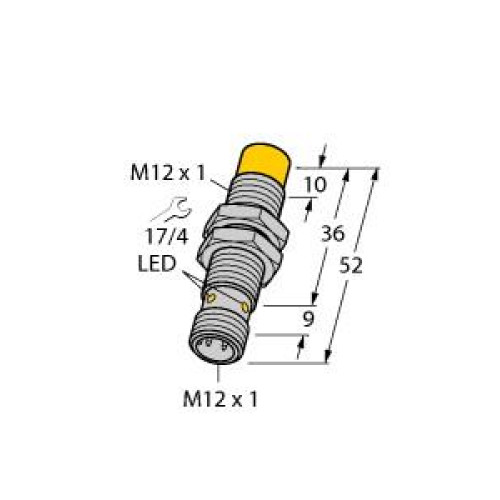

  • M12 x 1 Threaded Barrel
  • Material: Chrome-plated Brass
  • Factor 1 for all metals
  • Protection Class: IP68
  • Resistant to magnetic fields
  • Extended Temperature Range

Read more

  • High Switching Frequency
  • Output: NPN, NO Contact
  • Connector: M12 x 1 Male
  • DC 3-Wire


Product

Manufacturer Material ID -
NI8U-M12-AN6X-H1141
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Coating housing -
Chrome plated
Construction type housing -
Cylinder, screw-thread
Diameter sensor -
12 Millimetre
Housing material -
Metal
Length of sensor -
52 Millimetre
Mechanical mounting condition for sensor -
Not flat
Supply voltage -
10 Volt
Switching distance -
8 Millimetre
Switching frequency -
1000 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
NPN
Voltage type -
DC
