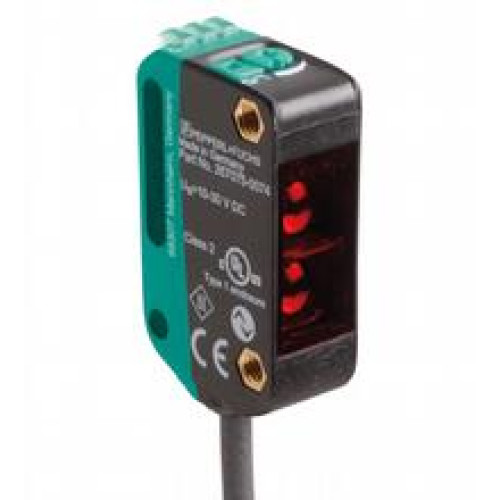

OBD1000-R100-2EP-IO-0.3M-V31

Diffuse mode sensor - Detection range: 2 ... 1000 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100039     Manufacturer: Pepperl+Fuchs
Diffuse mode sensor - Detection range: 2 ... 1000 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability Back Order

£76.28
  • Detection Range: 2 to 1000 mm
  • Light Source: LED, Light Type: Modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q (pin 4)
  • Switching Type: Adjustable with default settings for NPN normally open/light-on and PNP normally closed/dark-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector (4-pin)
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F)
  • Note: Movable cable not suitable for conveyor chains

Accessories



Product

Manufacturer Material ID -
267075-100039
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£76.28
