OBE12M-R100-S2EP-IO-0.3M-V31

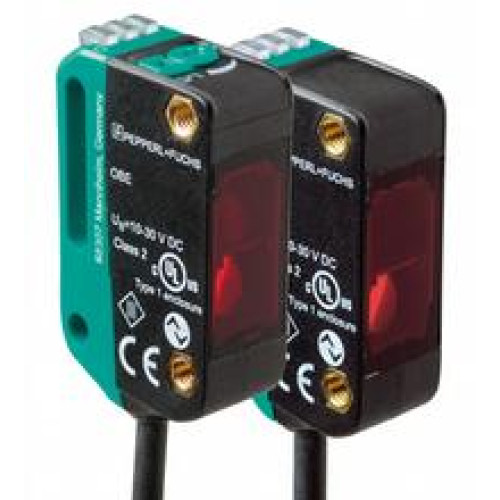

Thru-beam sensor - Effective detection range: 0 ... 12 m, Light source: LED, Light type: modulated visible red light, Signal outpu

Manufacturer's No: 280999     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 12 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability On Request

£103.42
  • Detection range: 0 to 12 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default settings: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector; 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
280999
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
