OBE20M-R101-S2EP-IO-0.3M-V1-L

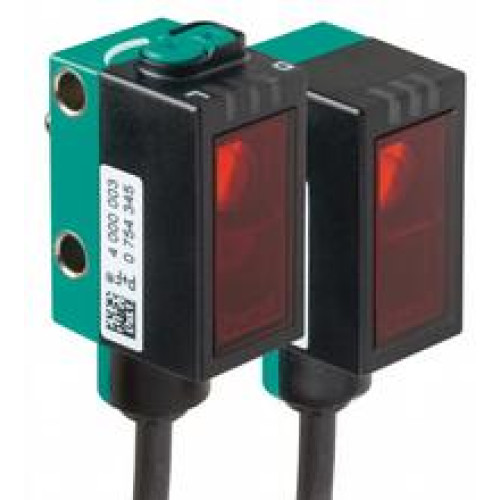

Thru-beam sensor - Effective detection range: 0 ... 20 m, Light source: laser diode, Light type: modulated visible red light, Sign

Manufacturer's No: 281018     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 20 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, r..

Availability On Request

£152.07
  • Detection range: 0 to 20 m
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable; default setting: C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not appropriate for conveyor chains


Product

Manufacturer Material ID -
281018
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£152.07
