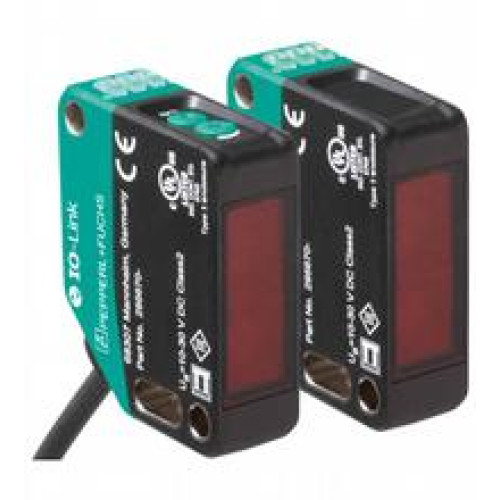

OBE40M-R200-S2EP-IO-0.3M-V1-L

Thru-beam sensor - Effective detection range: 0 ... 40 m, Light source: laser diode, Light type: modulated visible red light, Sign

Manufacturer's No: 301065     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 40 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, r..

Availability Back Order

£211.22
  • Detection range: 0 to 40 meters
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: 300mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -20 to 60 °C (-4 to 140 °F) for movable cable (not suitable for conveyor chains)

Accessories



Product

Manufacturer Material ID -
301065
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£211.22
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
