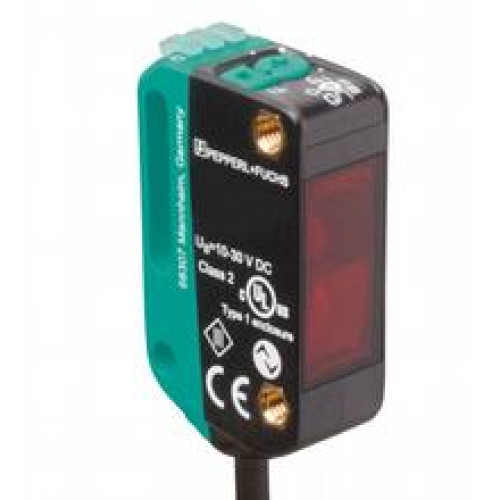

OBG5000-R100-2EP-IO-0.3M-V1

Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light

Manufacturer's No: 267075-100019     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability On Request

£127.75
  • Detection Range:
    • TEACH Mode: 0 to 3.5 m
    • Switch Position "N": 0 to 5 m
  • Light Source: LED
  • Light Type: Modulated visible red light
  • Signal Output:
    • 2 push-pull (4 in 1) outputs
    • Short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = pin 4)
  • Switching Type: Adjustable
    • Default Setting:
      • C/Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on
      • IO-Link /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on
  • Connection:
    • 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)
  • Note: Movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100019
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
Minimum Order Quantity -
1
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£127.75
