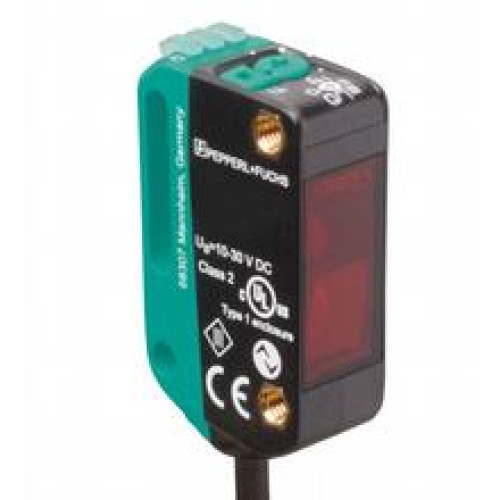

OBG5000-R100-E5F-IO-0.3M-V1

Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light

Manufacturer's No: 267075-100484     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 3.5 m in TEACH mode ; 0 ... 5 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 1 PNP, s..

Availability On Request

POA
  • Detection Range:
    • TEACH Mode: 0 to 3.5 m
    • Switch Position "N": 0 to 5 m
  • Light Source: LED
  • Light Type: Modulated visible red light
  • Signal Output: 1 PNP, short-circuit and reverse polarity protected
  • Interface Type: IO-Link via C/Q on pin 4
  • Switching Type: Adjustable, default setting: C/Q - Pin4: PNP normally open/dark-on
  • IO-Link Alarm Output: Pin2: PNP normally closed
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)

Read more

  • Note: Movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100484
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
