OBG8000-R200-2EP-IO-0.3M-V15

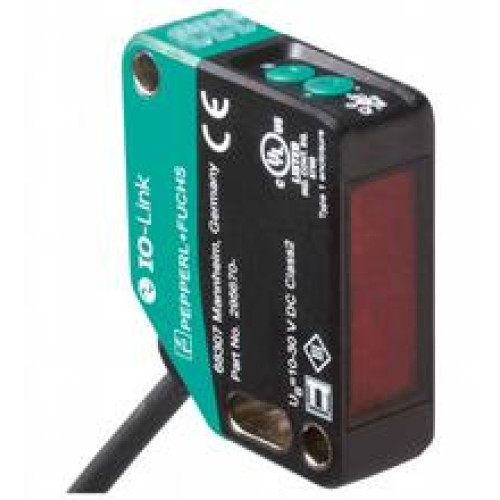

Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light

Manufacturer's No: 295670-100150     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability On Request

POA
  • Detection Range: - TEACH Mode: 0 to 5.6 m - Switch Position "N": 0 to 8 m

  • Light Source: LED - Light Type: Modulated visible red light

  • Signal Output: - 2 push-pull (4 in 1) outputs - Short-circuit, reverse polarity, and overvoltage protected

  • Interface Type: IO-Link (via C/Q = pin 4)

  • Switching Type: - Adjustable - Default Setting: - C/Q - Pin4: NPN normally open/dark-on, PNP normally closed/light-on - IO-Link/Q - Pin2: NPN normally closed/light-on, PNP normally open/dark-on

  • Connection: - 300 mm fixed cable with plug - M12 x 1, 5 pin

  • Operating Voltage: 10 to 30 V DC

  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)



Product

Manufacturer Material ID -
295670-100150
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
