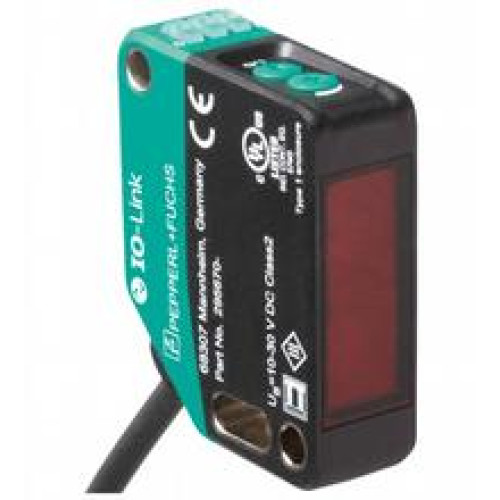

OBR15M-R200-2EP-IO-0.3M-V1

Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal

Manufacturer's No: 295670-100013     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rev..

Availability On Request

POA
  • Detection range: 0 to 15 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q on pin 4
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: 300 mm fixed cable with M12 x 1, 4-pin connector
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -20 to 60 °C (-4 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
295670-100013
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
