OBR15M-R200-2EP-IO-0.3M-V15

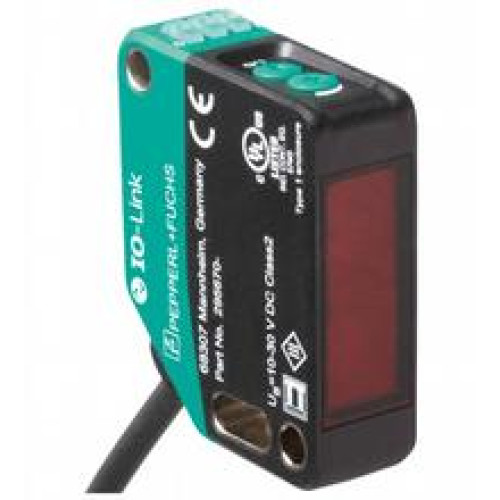

Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal

Manufacturer's No: 295670-100015     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rev..

Availability Back Order

£108.31
  • Detection range: 0 to 15 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable, default setting: C/Q - Pin4: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link/Q - Pin2: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: 300 mm fixed cable with plug, M12 x 1, 5 pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -20 to 60 °C (-4 to 140 °F), movable cable not suitable for conveyor chains

Accessories



Product

Manufacturer Material ID -
295670-100015
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£108.31
