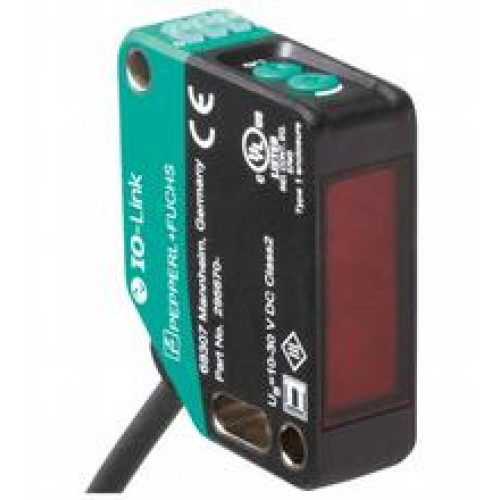

OBR15M-R200-2EP-IO-0.3M-V31

Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal

Manufacturer's No: 295670-100010     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rev..

Availability On Request

POA
  • Detection range: 0 to 15 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: Fixed cable 300 mm with M8 x 1 male connector (4-pin)
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) fixed cable, -20 to 60 °C (-4 to 140 °F) movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100010
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
