OBR25M-R200-2EP-IO-0.3M-V15-L

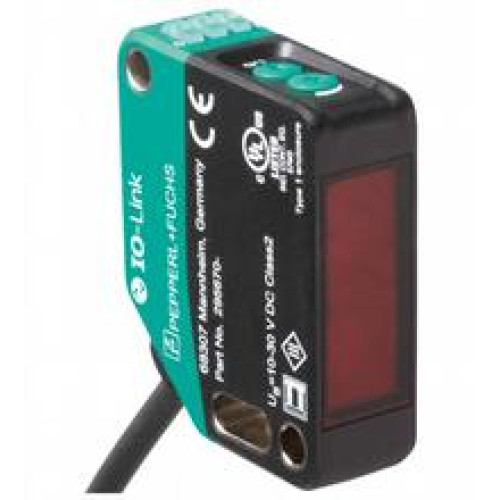

Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red

Manufacturer's No: 295670-100038     Manufacturer: Pepperl+Fuchs
Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit ..

Availability On Request

POA
  • Detection Range: 0 to 25 m
  • Light Source: Laser diode
  • Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = pin 4)
  • Switching Type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: 300 mm fixed cable with plug, M12 x 1, 5 pin
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -20 to 60 °C (-4 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100038
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

POA
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
